Product Description

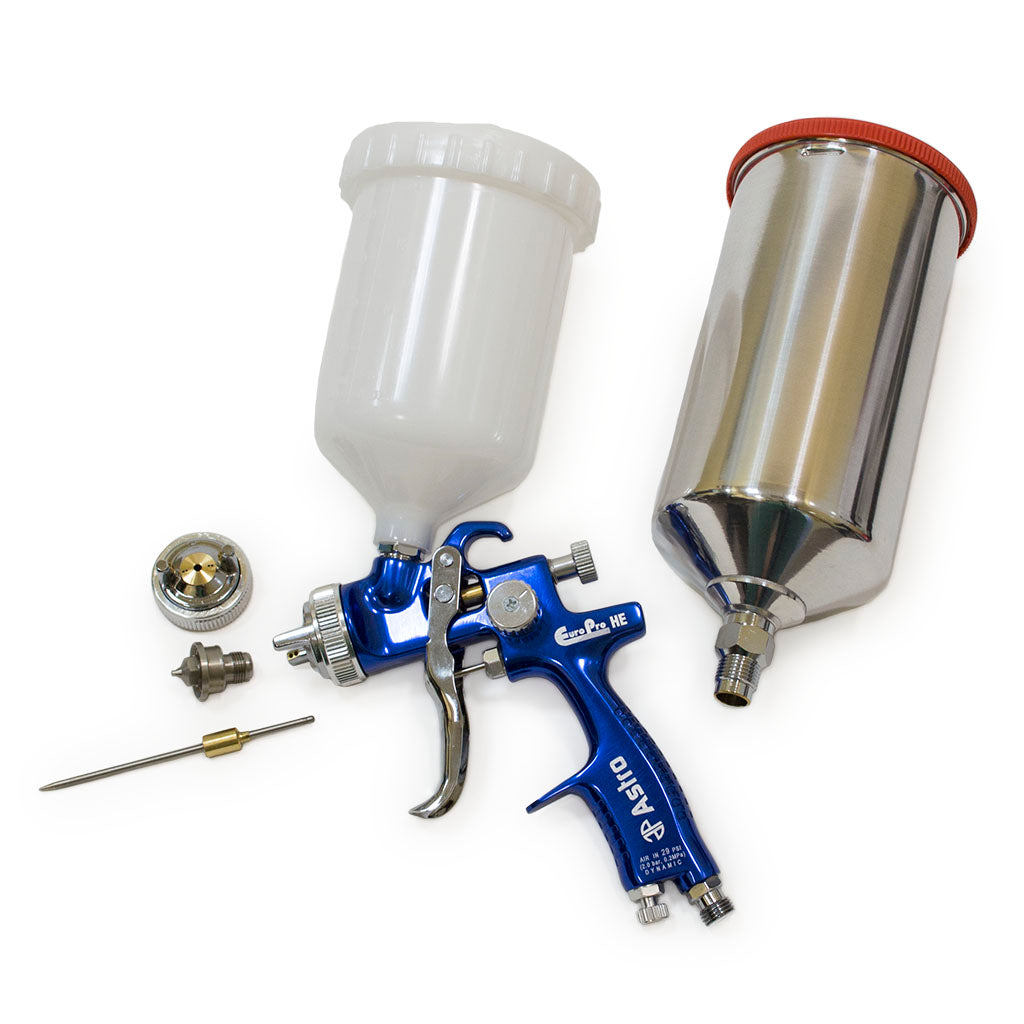

Upgrade Kit Includes:

• Astro Euro Pro HE Spray Gun108
• Astro 1.3 or 1.4Needle
• Astro Aluminum Paint Cup

Astro EUROHE108

DURABLE &LIGHTWEIGHT
• Forged and Anodized body for corrosionprotection
• Slick exteriorfinish
• Internal coatedpassages
• Stainless steel needle and fluidtip
• Lightweight: 325 grams (0.7 Lbs)

HIGH EFFICIENCY
• Unique pattern designed for great coverage, optimaloverlapping
• Low overspray
• Great transferefficiency
• Superior atomization

QUICK THREAD TECHNOLOGY
• 1 Turn to lock/unlock the aircap
• 3 Turns to lock/unlock the fluidtip
• Wide threads for easycleaning
• M16*P1.5 female thread fluidjoint
• Compatible with most traditional and disposable cupsystems

SMOOTH OPERATION
• Soft trigger pull to reducefatigue
• Precise lubricated adjustment knobs for bettercontrol
• Innovative CNC machining to avoid the need for gaskets behind the fluid tip

Standard EuroPro HE 105 Specifications:

Nozzle Size:1.8mm
Operation Pressure: 29psi
Weight: 0.7lbs. (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x145mm)
Avg. Air Consumption: 10.5 -12.5cfm
Air Inlet Thread NPT:¼”
Required Compressor: 3 -5hp
Max. Pattern at 6" to 8" Distance: 11" - 13"(280-330mm)
Air Hose I.D. Size: 6 -8mm
